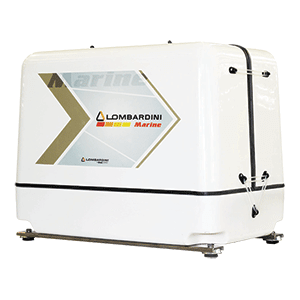

Lombardini Generator LMG 6500
Engine model | LDW 1003 MG |
Cylinders | 3 |
Displacement | 1028 cc |
Engine Power | 8,3 kW |
Round/Minute | 1500 RPM |
Description
The Lombardini generator set LMG 6500 is the result of several years of studies carried out following an in-depth market survey at shipyards and users.
The alternator is of the synchronous type without brushes with windings on inclined slots. The supplied voltage is practically constant between “empty” and nominal power. It has an excellent ability to absorb sudden power requests (cues) especially from electric motors, without causing disturbances to electronic equipment. The wave shape is very good and allows a safe use of the sophisticated on-board instruments and an excellent power supply of the battery chargers. The operating temperature is kept at optimal levels thanks to the innovative water cooling system through a special stainless steel heat exchanger, capable of guaranteeing the best performance of the alternator even in the presence of hot air in the engine room.
The Generator Set is equipped with a remote control and command panel with 10 meters of cable and quick coupling connector complete with: hour meter, warning lights for high water temperature, low oil pressure, battery charger and bar power indicator. luminous with overload alarm. To avoid serious and irreparable damage to the engine, a special device intervenes to stop the engine in case of high cooling water temperature or low oil pressure. The unit is supplied with the external anti-vibration mounts already mounted. And it is already prepared with holes on the canopy for the passage of electrical cables, water pump pipes and drain pipes. The quick couplings are already installed for the connection of the supply and the return of the diesel fuel.
It is sufficient to remove a half-shell of the canopy to easily carry out all maintenance operations relating to checking and topping up the oil and fresh water of the cooling circuit, replacing the impeller of the seawater pump, replacing the diesel filter. , oil and zinc, and the extraction of the oil for periodic change with the supplied pump. Always in an easily accessible position we find the container for the electrical components and the diesel pump.
Engine manufacturer | Lombardini |
Engine model | LDW 1003 MG |
Cylinders | 3 |
Displacement | 1028 cc |
Engine Power | 8,3 kW |
Round/Minute | 1500 RPM (1800 RPM on request) |
Cooling System | Indirect with heat exchanger |
Electric Starter | 12 Volt remote-controlled |
Alternator | Synchronous brushless water-cooled alternator |
Power | 6,5 KVA – 6 KW |
Voltage | Single-phase AC 230/115 Volt auto-regulated |
Weight | 170 kg |
Frequenza | 50 Hz (60 Hz on request) |
