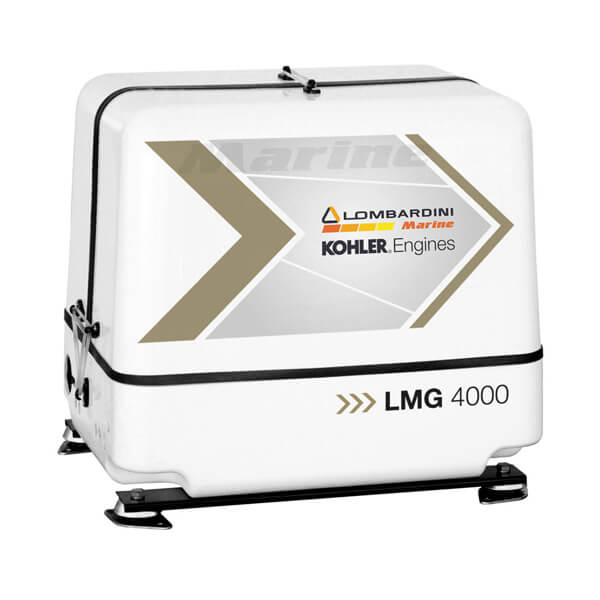

Lombardini Generator LMG 4000

ENGINE
The Lombardini 15 LD is installed on the LMG 4000/6000 models, a single-cylinder four-stroke diesel engine, which stands out for its compactness and lightness, thanks to the construction of the aluminum base and head and the use of the air cooling system.

ALTERNATOR
In the LMG 4000/6000 models the alternator is of the synchronous type without brushes with windings on inclined slots. The optimal wave shape allows safe operation of the electronic equipment on board and an efficient power supply of the battery charger.

COOLING DOWN
The LMG 4000/6000 generators are characterized by an air-water cooling with radiator.
The sea water cools the engine oil, the external walls of the alternator and the intake air.

REMOTE CONTROL PANEL
The generator is equipped with a remote control and command panel with 15 m of cable and quick coupling connector, complete with warning lights for high water temperature and low oil pressure. A display indicates running hours, voltage, current delivered and alerts for maintenance interventions.
An additional control panel is available on request.



Code: LMG 4000
Categories: Generators, Generating Sets

Engine manufacturer	Lombardini
Engine model	15 LD 350
Cylinders	1
Displacement	349
Engine Power	4.9 kw
Round/Minute	3000 RPM (3600 RPM on request)
Cooling System	Intercooler air-water
Electric Starter	12 Volt remote controlled
Alternator	Water-cooled brushless synchronous alternator
Power	4 kVA – 3,2 kW
Voltage	Single phase AC 230/120 Volt self-regulated
Weight	90 kg x
Frequency	50 Hz (60 Hz on request)
