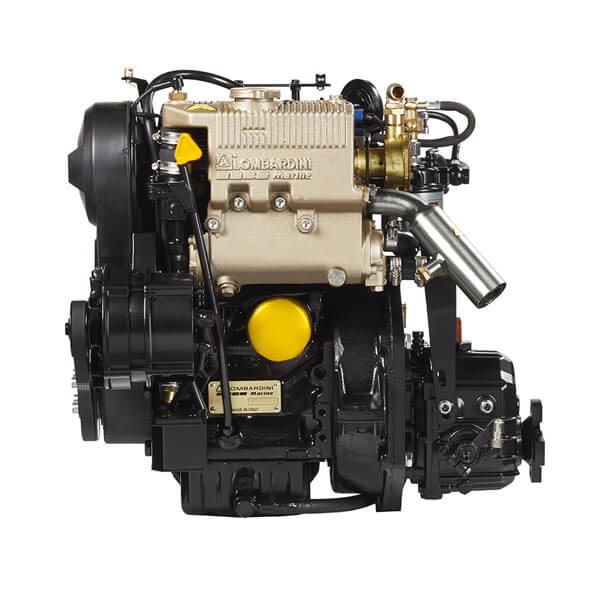

Lombardini Engine LDW 702 M
| Cylinders | 2 |
| Bore x Stroke (mm) | 75×77,6 |
| Displacement (cm3) | 686 |
| Power Max HP | 18 hp |
| Power Max KW | 13.2 kw |
| Propeller Power HP | 18 hp |
| Propeller Power KW | 13,2 kw |
| Compression Ratio | 22,8:1 |
| RPM | 3600 |
Description
The Lombardini engine LDW 702 M is a 20 hp FOCS series engine that can be driven without a license. The FOCS by Lombardini Marine technology, on which it is based, makes this type of marine engine extremely reliable and sturdy, with consumption among the lowest in its category and very long maintenance intervals. It is liquid cooled with a heat exchanger.
Use and maintenance manual FOCS
Brochure FOCS-CHD
Lombardini Marine Catalog
It is a family of 4-stroke marine diesel inboard engines (LDW 502 M, LDW 702 M, LDW 1003 M, LDW 1404 M) liquid cooled with heat exchanger, with zinc anode, monobloc cylinder block in cast iron (in aluminum on LDW 502M) with rebreatable liners, monolithic aluminum head, indirect injection with pump-injector, single overhead shaft distribution, timing control with toothed belt; oil pump on the crankshaft; fresh water pump in the monobloc; water-cooled exhaust pipe; self-priming sea water pump; air intake filter. Special anti-corrosion treatments.
Code: LDW 702 M
Categories: Inboard Marine Engines
