Lombardini Engine LDW 702

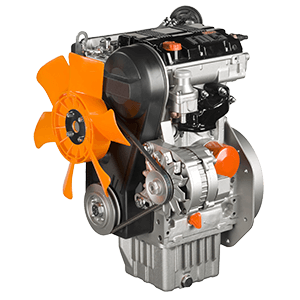

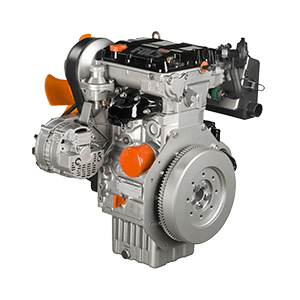

Lombardini engine LDW 702, 2 cylinders, liquid cooled. A version of this engine is mounted on Quargo vehicles.

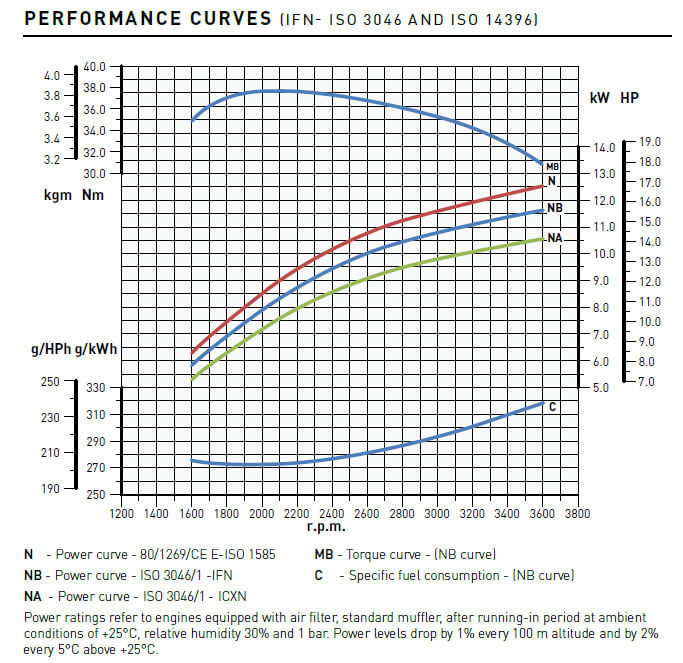

- N 12.5 kw | 17 hp
- NB 11.7 kw | 16 hp
- NA 10.7 kw | 14.5 hp
- 2 cylinders | 3600 rpm
- 686 cm3 | 40.5 @ 2000 Nm@rpm
Main applications
Farm machinery | Motofalce | Tiller | Lawn mower | Concrete mixer | Dumper | Mini dumper | Mini excavator | Motor compressor | Vibrating plate | Compactor roller | Asphalt cutter | Generator | Refrigerating unit | Welder | Motor sweeper | Aerial platform | Fruit harvester wagon | 4×4 tractor | Compact loader shovel
Use and maintenance manual
Workshop Manual

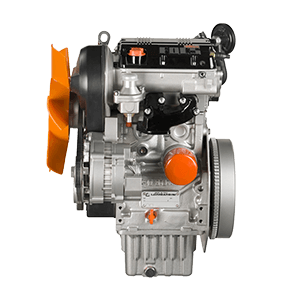

4 stroke diesel engine with cylinders in line
Liquid cooled with axial fan
Indirect injection with injector pump on head
Single –shaft distribution in head
Double PTO on crankshaft
3rd PTO on the distribution
Counterclockwise rotation (1st PTO)
Forced lubrication with vane pump on the crankshaft
Full flow external oil filter
Water pump in the engine block
Automatic extra fuel starting device
Centrifugal governor
Torque regulator
Aluminum cylinder head
Cast iron engine block with re-borable integral liners
2 valves for cylinder
Overhead camshaft on head driven by cogged belt
Breather return oil steam
Heating cab system predisposition

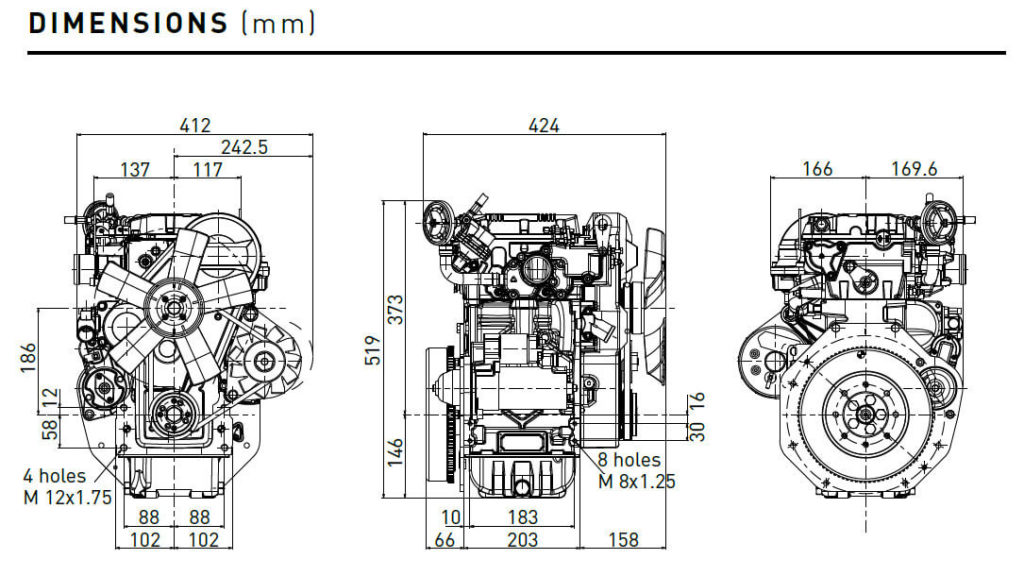

| Cylinder | 2 |
| Bore (mm) | 75 |
| Stroke (mm) | 77.6 |
| Engine displ (cm3) | 686 |
| Injection system | IDI |
| Compression ratio | 22.8:1 |
| H × L × W (fan excluded) (mm) | 519x424x412 |
| Dry weight (kg) | 66 |
| Ambient operating temps (°C) | -15° +50° |
| Gradeability-all round (intermittent -30 min) (deg) |
25° |
| Gradeability-all round (peak value -1 min) (deg) |
35° |
| Cap. of air required for correct combustion @3600 (l/min) | 1240 |
| Cap. of air required for correct cooling @3600 (l/min) | 65(1:1.23) |
| Oil sump capacity (l) | 1.6 |
| Oil consumption (kg/h) | 0,009 |
| Oil consumption (% fuel) | <0.2 |
| Oil change interval std/synthetic (hr) | 250 |
| Oil filter change interval std/synthetic (hr) | 250 |
| Valve adjustement (hr) | 250 |
| Lubrication | Oil SAE 5W 40 |
