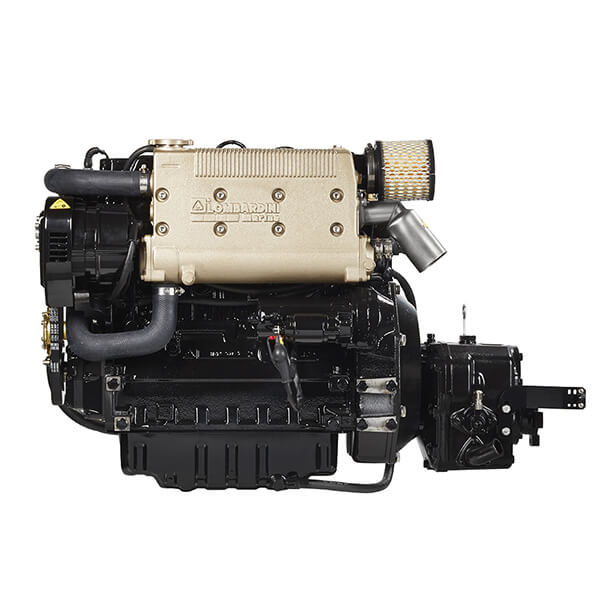

Lombardini Engine LDW 2204 M
| Cylinders | 4 |
| Bore x Stroke (mm) | 88×90,4 |
| Displacement (cm3) | 2199 |
| Power Max HP | 60 hp |
| Power Max KW | 44 kw |
| Propeller Power HP | 57 hp |
| Propeller Power KW | 42 kw |
| Compression Ratio | 22:1 |
| RPM | 3600 |
Description
The Lombardini engine LDW 2204 M, a high performance diesel inboard marine engine, is an 87 hp engine that uses Lombardini Marine CHD technology. The extraordinary reliability and robustness make this marine engine the ideal solution for any type of boat. Consumption levels are very low and maintenance intervals are long. Uses liquid cooling system with heat exchanger.
Use and maintenance manual CHD
Brochure FOCS-CHD
Lombardini Marine Catalog
These are 4-stroke diesel inboard marine engines (LDW 1904 M, LDW 2204 M, LDW 2204 MT) with liquid cooling with heat exchanger, with zinc anode, cast iron monobloc cylinder base with resettable liners; monolithic head in cast iron, indirect injection; single-shaft distribution with rods and rockers; gear distribution control; oil pump on the crankshaft; water-cooled exhaust pipe; self-priming sea water pump; air intake filter. Special anti-corrosion treatments.
Code: LDW 2204 M
Categories: Inboard Marine Engines
