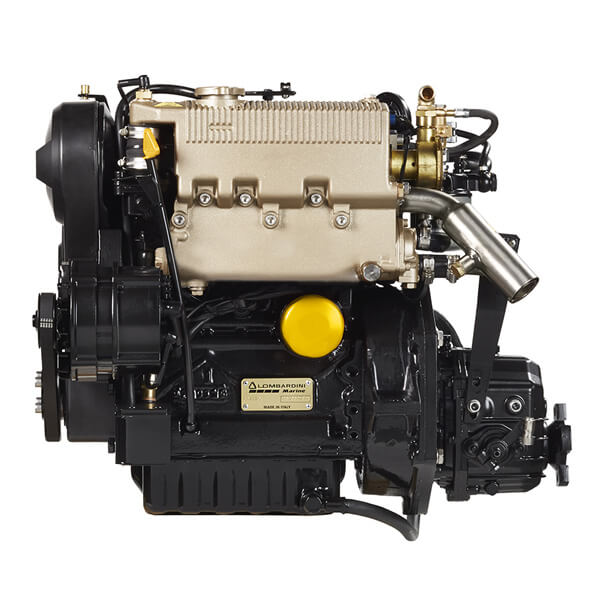

Lombardini Engine LDW 1003 M
Cylinders | 3 |
Bore x Stroke (mm) | 75×77,6 |
Displacement (cm3) | 1028 |
Power Max HP | 27 hp |
Power Max KW | 19.5 kw |
Propeller Power HP | 28 hp |
Propeller Power KW | 20,6 kw |
Compression Ratio | 22,8:1 |
RPM | 3600 |
Description
The Lombardini engine LDW 1003 M is a 30 hp diesel inboard marine engine. You drive without a license and uses the FOCS technology of Lombardini Marine engines. It turns out to be a marine engine of extraordinary reliability and robustness, with excellent levels of performance despite very low consumption levels and long maintenance intervals. Uses liquid cooling system with heat exchanger.
It is a family of 4-stroke marine diesel inboard engines (LDW 502 M, LDW 702 M, LDW 1003 M, LDW 1404 M) liquid cooled with heat exchanger, with zinc anode, monobloc cylinder block in cast iron (in aluminum on LDW 502M) with rebreatable liners, monolithic aluminum head, indirect injection with pump-injector, single overhead shaft distribution, timing control with toothed belt; oil pump on the crankshaft; fresh water pump in the monobloc; water-cooled exhaust pipe; self-priming sea water pump; air intake filter. Special anti-corrosion treatments.
Code: LDW 1003 M
Categories: Inboard Marine Engines
