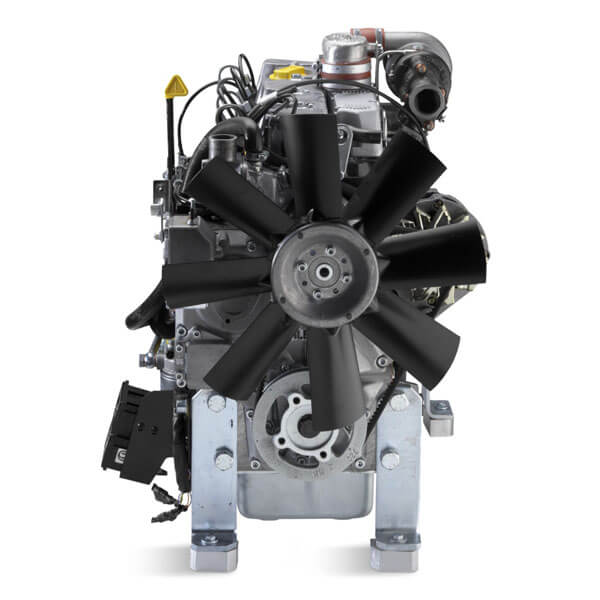

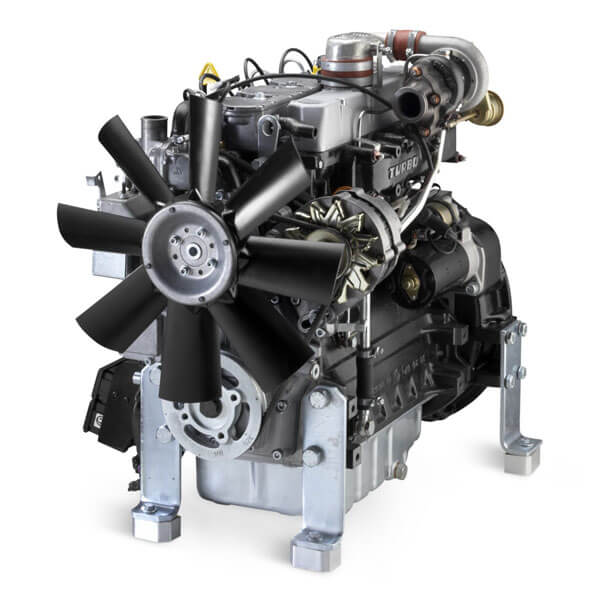

Kohler Engine KDW 2204T
Technical specifications
| Cylinders | 4 |
| Bore (mm) | 88 |
| Stroke (mm) | 90.4 |
| Engine displ (cm3) | 2199 |
| Injection system | IDI |
| Compression ratio | 22.8:1 |
Description
The Kohler diesel engine KDW 2204T is the turbo model of the KDW 2204. It is a four-stroke, four-cylinder in-line, liquid-cooled engine. The displacement, as for its non-turbo equivalent, is equal to 2199 cm³ while the declared power rises to 44.3 kW, which by far makes it the most powerful of the range.
Use and maintenance manual
Workshop Manual
The Kohler diesel engine KDW 2204T is the turbo model of the KDW 2204. This is a four-cylinder in-line liquid cooled four-stroke engine. The displacement, as for its non-turbo equivalent, is equal to 2199 cm³ while the declared power increases to 44.3 kW, which makes it the most powerful of the range. The distinctive features of this diesel engine are its compactness, reliability and versatility. The latter, a property that makes it an engine with multiple applications in various fields, agricultural and industrial/construction. Here are some of the applications for which the KDW 2204T is used: engine fruityard/vinyard tractor, fruit picking/harvesting, 4WD tractor, water pump (irrigation), wood chipper, concrete mixer, concrete sprayer, dumper, compaction roller, line striper, compact shovel loader, generator set, refrigerating groups, motor sweeper, aerial platform.
Code: KDW 2204T
Categories: Kohler Diesel Engine
