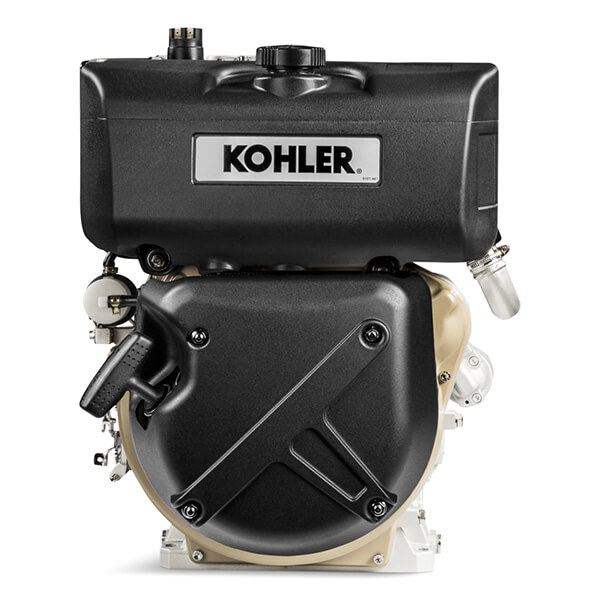

Kohler Engine KD15 440S
Technical specifications
| Cylinders | 1 |
| Bore (mm) | 86 |
| Stroke (mm) | 76 |
| Engine displ (cm3) | 441 |
| Injection type | DI |
| Compression ratio | 20.5:1 |
Description
The Kohler engine KD15 440S is a four-stroke, single-cylinder, air-cooled engine. It differs from the KDW 440 in that it is a left-hand engine, or specifically, the crankshaft rotates counterclockwise. The displacement is 441 cm³ while the declared power is 6.8 kW.
Use and maintenance manual
Workshop Manual
The Kohler diesel engine KD15 440S is a four-stroke, single cylinder, air-cooled engine. It differs from the KDW 440 due to the fact that it is a left engine, specifically the crankshaft rotates counterclockwise. The displacement is 441 cm³ while the declared power of 6.8 kW. Due to its particular characteristics such as versatility, compactness and reliability, it is an engine that is widely used in various fields of application, both agricultural and industrial. For example mounted as a engine for: walk-behind tractor, tiller, lawn mower, water pump (irrigation), concrete mixer, mini dumper, compaction roller, vibrating plate, asphalt cutter, line striper, self-priming water pump, air compressor, generator set, welder, motor sweeper, aerial platform, high pressure washer, fire fighting pump.
Code: KD15 440S
Categories: Kohler Diesel Engines
