KD15 350S

You are here:

Home
Products
KD15 350S

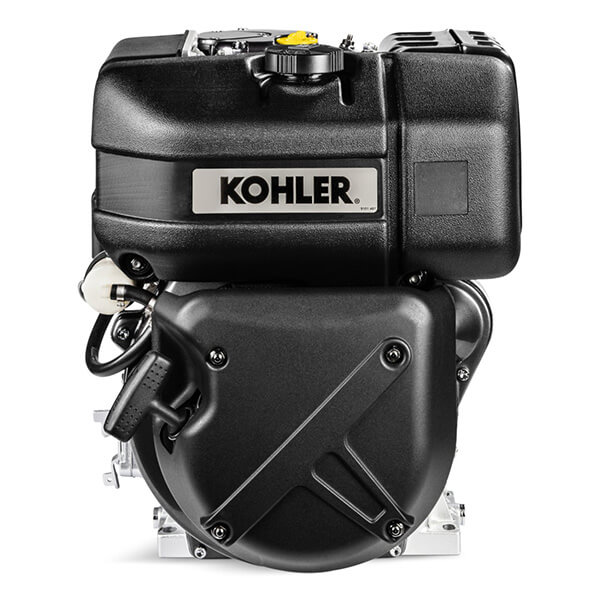

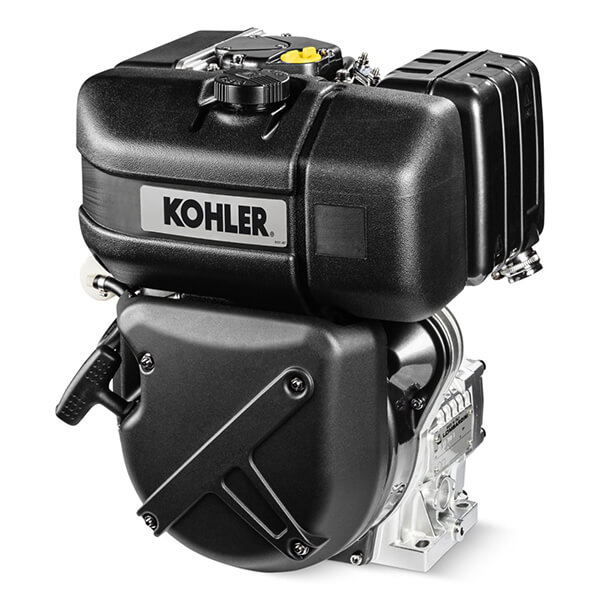

Kohler Engine KD15 350S

Technical specifications

Cylinders	1
Bore (mm)	82
Stroke (mm)	66
Engine displ (cm3)	349
Injection type	DI
Compression ratio	20.3:1

Description

The Kohler KD15 350S, single-cylinder four-stroke air-cooled engine is the left-hand version of the KD15 350. In practice, this model differs from the equivalent in having the crankshaft that rotates counterclockwise. The displacement is 349 cm³ while the power is equal to 4.6 kW.

Use and maintenance manual

Workshop Manual

The Kohler diesel engine KD15 350S , an air-cooled four-stroke single-cylinder engine is the left-hand version of the KD15 350. In practice, this model differs from the equivalent for having the crankshaft rotating counterclockwise. The displacement is 349 cm³ while the power is equal to 4.6 kW. For versatility and reliability it turns out to be a highly appreciated engine used in both agricultural and industrial contexts. For example for walk-behind tractor, tiller, lawn mower, water pump (irrigation), concrete mixer, mini dumper, compaction roller, vibrating plate, asphalt cutter, line striper, self-priming water pump, air compressor, generator set, welder, motor sweeper, aerial platform, high pressure washer, fire fighting pump.

Codice: KD15 350S
Categorie: Kohler Diesel Engines
