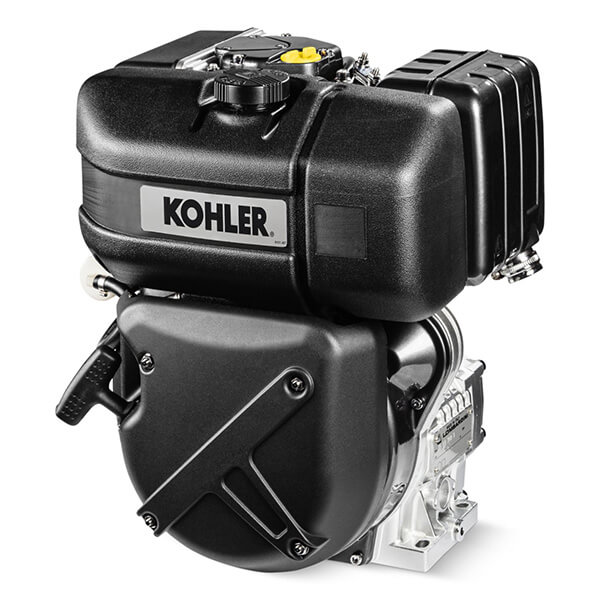

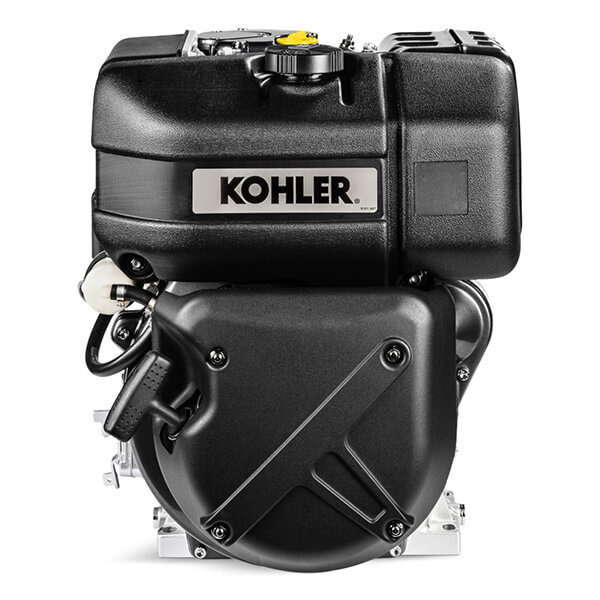

Kohler Engine KD15 225S

Technical specifications

Cylinders	1
Bore (mm)	69
Stroke (mm)	60
Engine displ (cm3)	224
Injection type	DI
Compression ratio	21:1

Description

The Kohler engine KD15 225S s the smallest diesel engine in the Kohler KD15 series. This is an air-cooled single-cylinder four-stroke engine. It has exactly the same displacement as the KD15 225, that is 224 cm³ and a declared power of 2.5 kW. It is a left-hand motor, that is, compared to conventional motors, the crankshaft rotates counterclockwise.

Use and maintenance manual

Workshop Manual

Due to its compactness and low consumption, both of fuel and oil, it is widely used for agricultural applications (lawn mower, lawn mower, motor hoe, water pump for lawn mowers), industrial applications (concrete mixer, mini dumper, compactor roller, vibrating plate, asphalt cutter, road marking machine , self-priming water pump, air compressor, welding machine, sweeper, aerial platform, pressure washer, fire pump) as well as as a generator.

Code: KD15 225S
Categories: Kohler Diesel Engines
