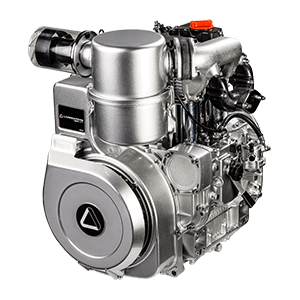

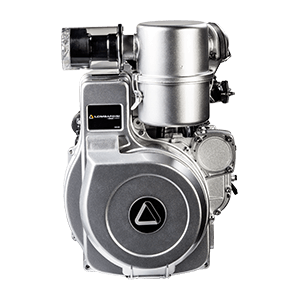

Lombardini Engine 9 LD 625-2
Lombardini engine 9LD 625/2, 25.5 cv air-cooled 2 cylinders. These motors represent the best market proposal for their own segment, delivering durable performance, compactness and low maintenance costs. Much used in applications such as 4×4 tractors, pumps and compressors, generating sets, farm machinery, mini dumpers.

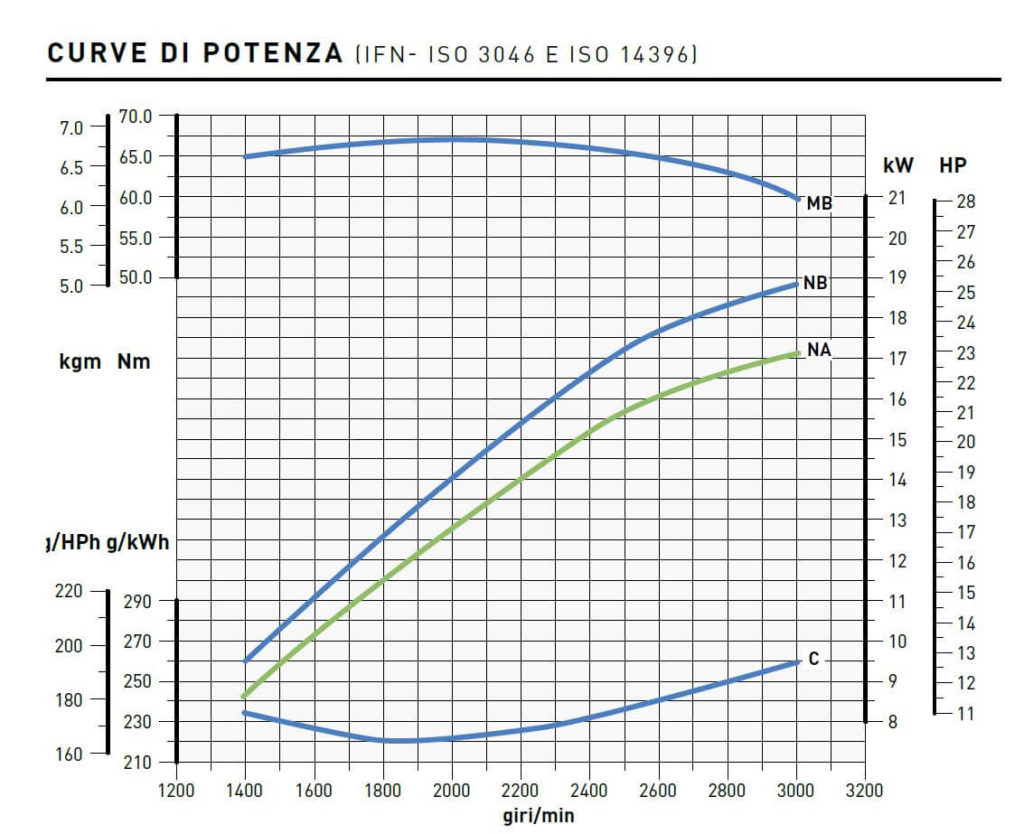

- N 21 kw | 28.5 hp
- NB 18.8 kw | 25.5 hp
- NA 16.9 kw | 23 hp
- 2 cylinders | 3000 rpm
- 1248 cm3 | 67 @ 2000 Nm@rpm
Main applications
Farm machinery | Concrete mixer | Dumper | Mini dumper | Mini excavator | Motor compressor | Asphalt cutter | Generator | Refrigerating unit | Welder | Motor sweeper | Aerial platform | Fruit harvester wagon | 4×4 tractor | Compact loader shovel
Use and maintenance manual
Workshop Manual
4 stroke air cooled diesel engine
Direct injection
Mechanical fuel lift pump
Forced lubrication with oil pump
Full flow oil filtration
Torque regulator
Centrifugal speed governor
Crankcase in die-cast aluminum
Electric starting
Counter-clockwise rotation (from power take-off side)
Aluminum alloy independent heads
Indipendent cast iron cylinders
Automatic extra fuel starting device
Air cooled by fan
Power take-off on Flywheel
| Cylinders | 2 |
| Bore (mm) | 95 |
| Stroke (mm) | 88 |
| Engine displ (cm3) | 1248 |
| Injection system | DI |
| Compression ratio | 17.5:1 |

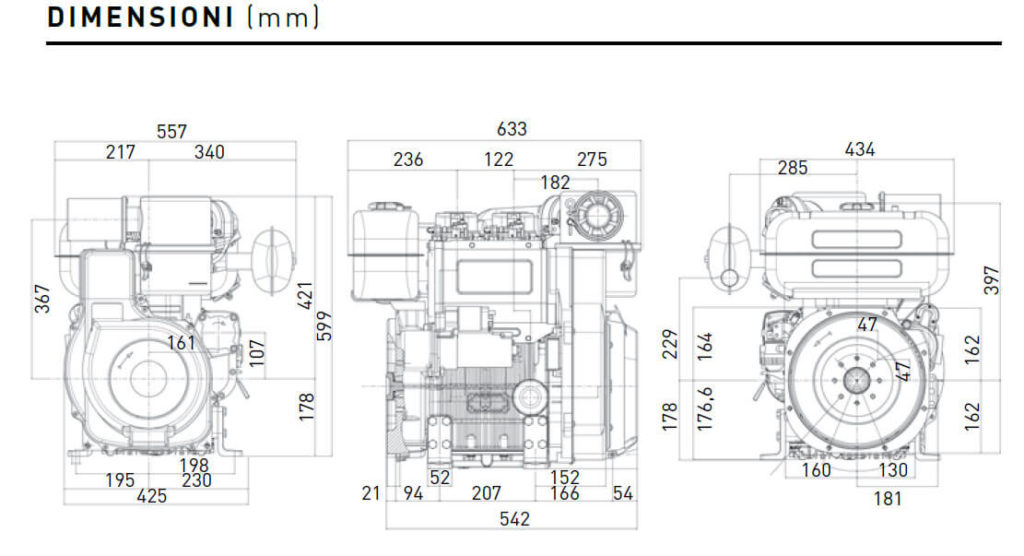

| H × L × W (fan excluded) (mm) | 599x633x557 |
| Dry weight (kg) | 115 |
| Daily service points – positions | 1 side service |
| Ambient operating temps (°C) | -10° +45° |
| Gradeability-all round (intermittent -30 min) (deg) |
25° |
| Gradeability-all round (peak value -1 min) (deg) |
35° |
| Cap. of air required for correct combustion @3600 l/min | 1600(@3000) |
| Cap. of air required for correct cooling @3600 (l/min) | 26300 (@3000) |
| Fuel tank capacity (l) | 10 |
| Oil sump capacity (l) | 2.8 |
| Oil consumption (kg/h) | 0.013 |
| Oil change interval std/synthetic (hr) | 250 |
| Oil filter change interval std/synthetic (hr) | 250 |
| Dry air cleaner change interval (hr) | 250 |
| Valve adjustement (hr) | 250 |
| Lubrication | Oil SAE 10W 40 API CF4/SG ACEA B2/E2 |
