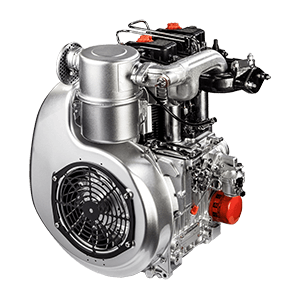

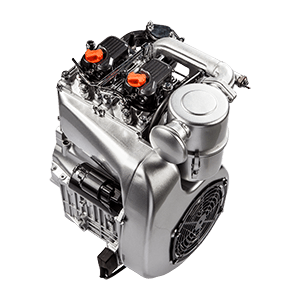

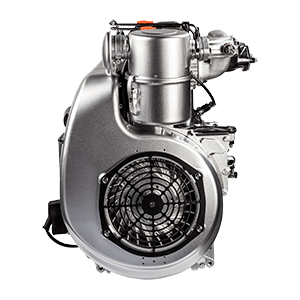

Lombardini Engine 12 LD 477-2
Lombardini engine 12 LD 477-2, with its 2 cylinders and 22.8 horsepower, is heavily used in the agriculture and construction sectors.

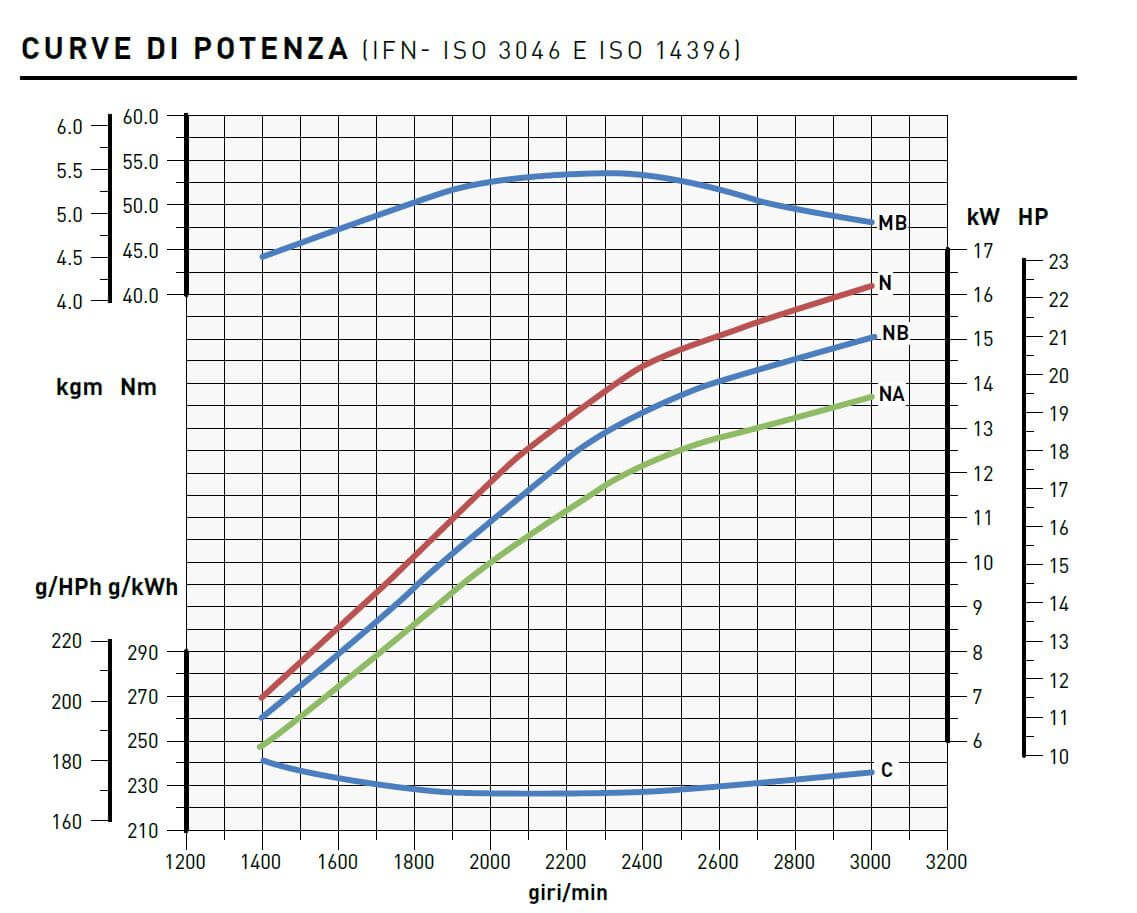

- N 16.8 kw | 22.8 hp
- NB 15.7 kw | 21.4 hp
- NA 14.5 kw | 19.7 hp
- 2 cylinders | 3600 rpm
- 954 cm3 | 55 @ 2100 Nm@rpm
Main applications
Farm machinery | Lawn mower | Concrete mixer | Dumper | Mini dumper | Mini excavator | Motor compressor | Compactor roller | Asphalt cutter | Generator | Refrigerating unit | Welder | Motor sweeper | Aerial platform | Fruit harvester wagon | 4×4 tractor | Compact loader shovel
Use and maintenance manual
Workshop Manual
4 stroke air cooled diesel engine
Direct injection
Mechanical fuel lift pump
Forced lubrication with oil pump
Full flow oil filtration
Torque regulator
Centrifugal speed governor
Crankcase in die-cast aluminum
Electric starting
Counter-clockwise rotation (from power take-off side)
Aluminum alloy independent heads
Indipendent cast iron cylinders
Automatic extra fuel starting device
Air cooled by fan
Power take-off on crankshaft
| Cylinders | 2 |
| Bore (mm) | 90 |
| Stroke (mm) | 75 |
| Engine displ (cm3) | 954 |
| Injection system | DI |
| Compression ratio | 19:1 |

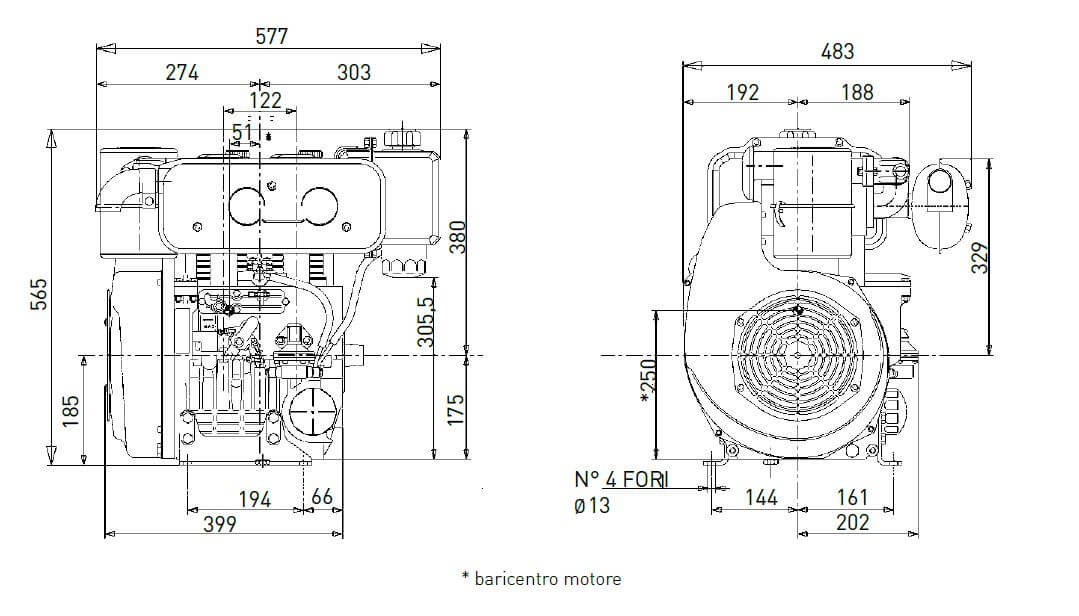

| H × L × W (fan excluded) (mm) | 565x577x483 |
| Dry weight (kg) | 78 |
| Daily service points – positions | 1 side service |
| Ambient operating temps (°C) | -10° +45° |
| Gradeability-all round (intermittent -30 min) (deg) |
25° |
| Gradeability-all round (peak value -1 min) (deg) |
35° |
| Cap. of air required for correct combustion @3600 (l/min) | 1500/1220 |
| Cap. of air required for correct cooling @3600 (l/min) | 15800/13200 |
| Fuel tank capacity (l) | 7 |
| Oil sump capacity (l) | 2.5 |
| Oil consumption (kg/h) | 0.011 |
| Oil change interval std/synthetic (hr) | 200 |
| Oil filter change interval std/synthetic (hr) | 200 |
| Valve adjustement (hr) | 300 |
| Lubrication | Oil SAE 15W 40 API CF4/SG ACEA B2/E2 |
