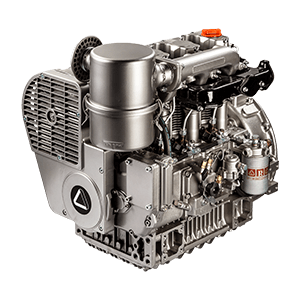

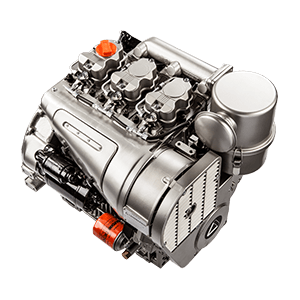

Lombardini Engine 11 LD 626-3
Lombardini engine 11 LD 626-3, 35.5 horsepower is the most powerful among the air-cooled engines.

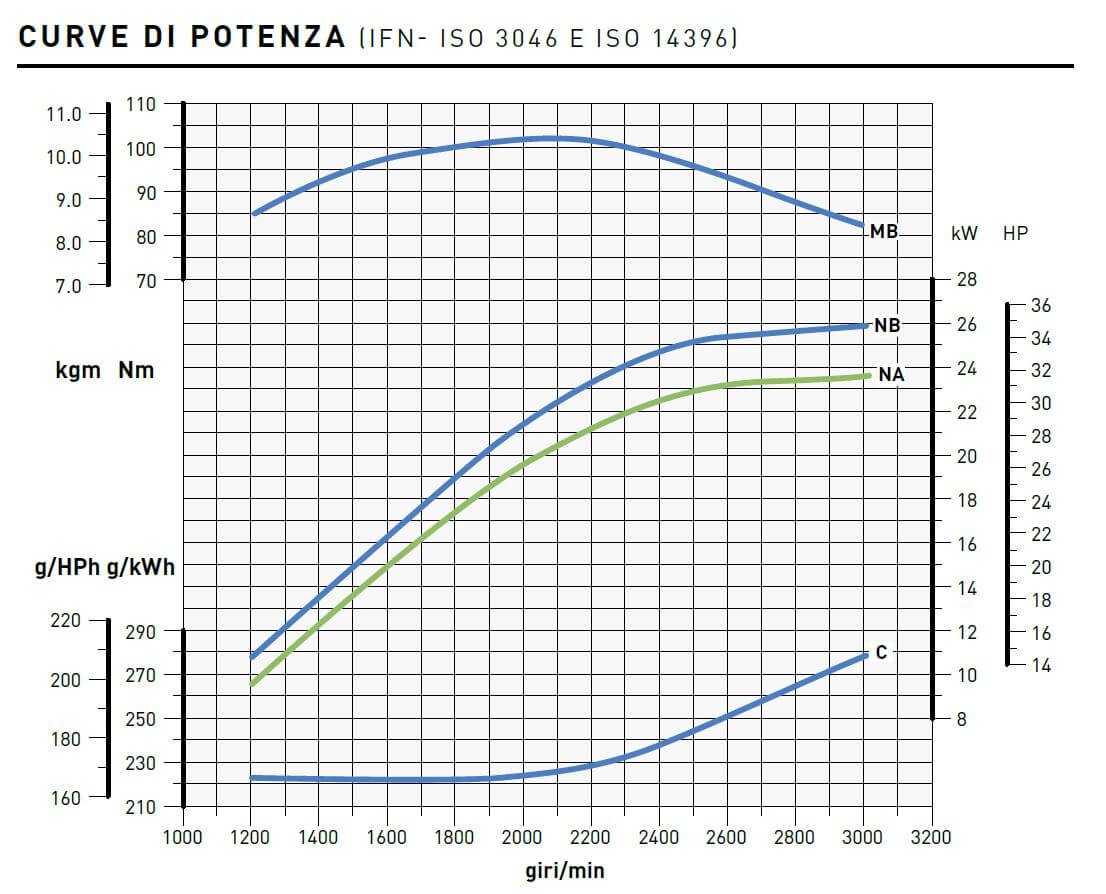

- N 30.9 kw | 42 hp
- NB 28.6 kw | 39 hp
- NA 26.3 kw | 35.8 hp
- 3 cylinders | 3000 rpm
- 1870 cm3 | 114.5 @ 2000 Nm@rpm
Main applications
Farm machinery | Concrete mixer | Dumper | Mini dumper | Mini excavator | Motor compressor | Compactor roller | Asphalt cutter | Generator | Refrigerating unit | Welder | Motor sweeper Aerial platform | Fruit harvester wagon | 4×4 tractor | Compact loader shovel
Use and maintenance manual
Workshop Manual
4 stroke air cooled diesel engine
Direct injection
Mechanical fuel lift pump
Forced lubrication with oil pump
Full flow oil filtration
Torque regulator
Centrifugal speed governor
Crankcase in die-cast aluminum
Electric starting
Counter-clockwise rotation (from power take-off side)
Aluminum alloy independent heads
Indipendent cast iron cylinders
Automatic extra fuel starting device
Air cooled by fan
Power take-off on flywheel
| Cylinders | 3 |
| Bore (mm) | 95 |
| Stroke (mm) | 88 |
| Engine displ (cm3) | 1870 |
| Injection system | DI |
| Compression ratio | 17:1 |

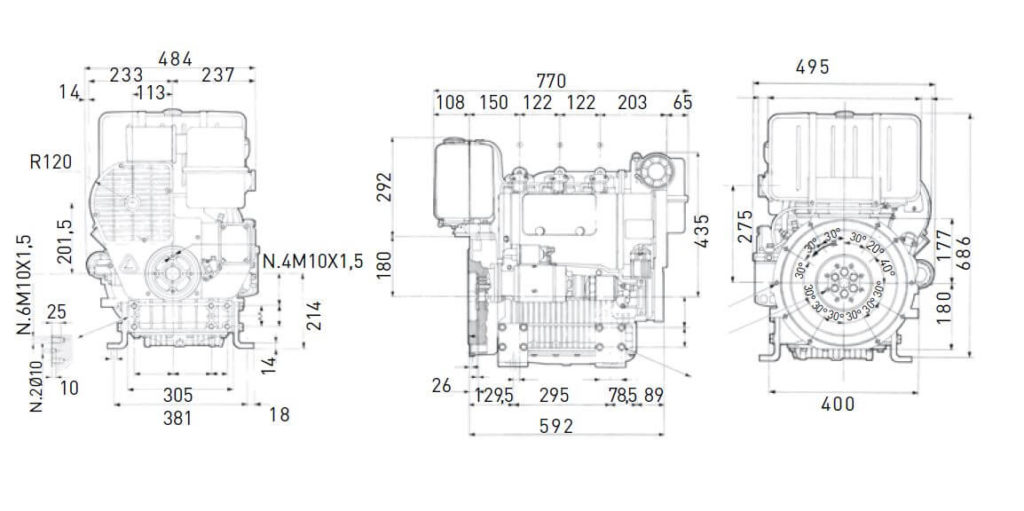

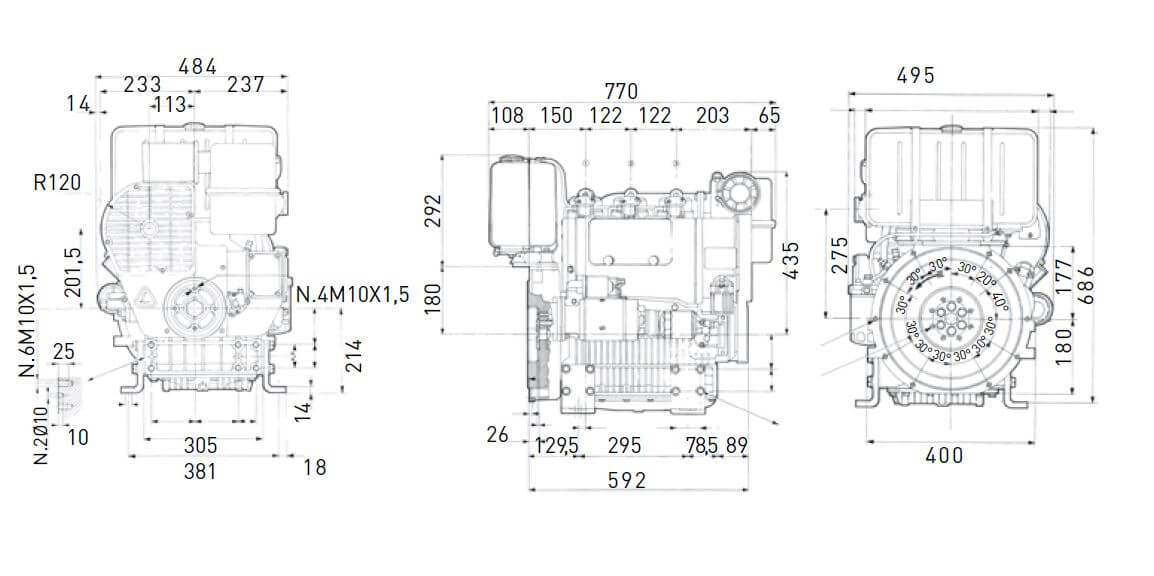

| H × L × W (fan excluded) (mm) | 686x770x495 |
| Dry weight (kg) | 170 |
| Daily service points – positions | 1 side service |
| Ambient operating temps (°C) | -10° +45° |
| Gradeability-all round (deg) (intermittent -30 min) (deg) |
25° |
| Gradeability-all round (peak value -1 min) (deg) |
35° |
| Cap. of air required for correct combustion @3600 (l/min) | 2400 (@3000) |
| Cap. of air required for correct cooling @3600 (l/min) | 38000 (@3000) |
| Fuel tank capacity (l) | 15 |
| Oil sump capacity (l) | 5 |
| Oil consumption (kg/h) | 0,017 |
| Oil change interval std/synthetic (hr) | 250 |
| Oil filter change interval std/synthetic (hr) | 250 |
| Valve adjustement (hr) | 500 |
| Lubrication | Oil SAE 5W 40 API CF4/SG ACEA B2/E2 |
